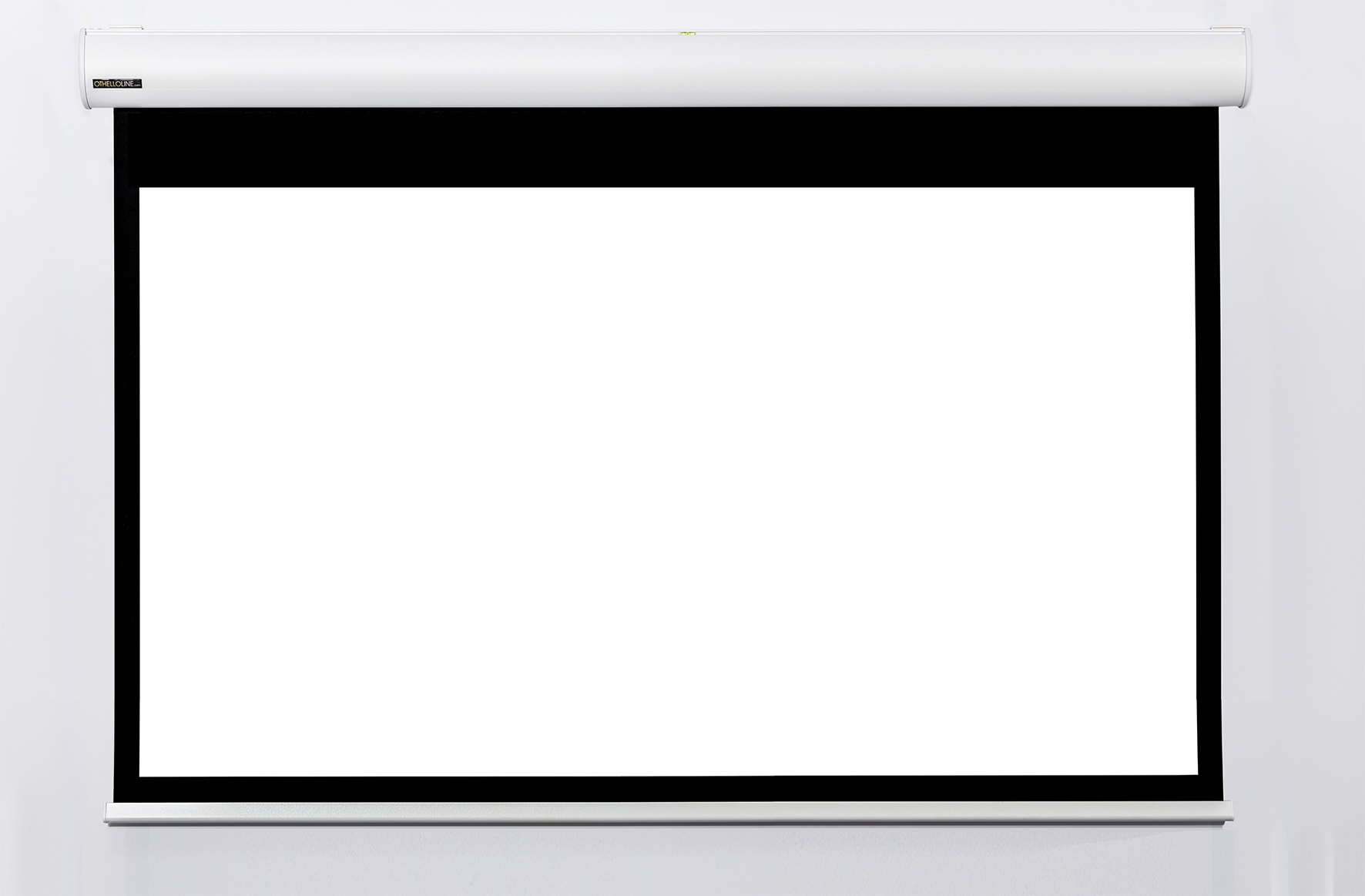

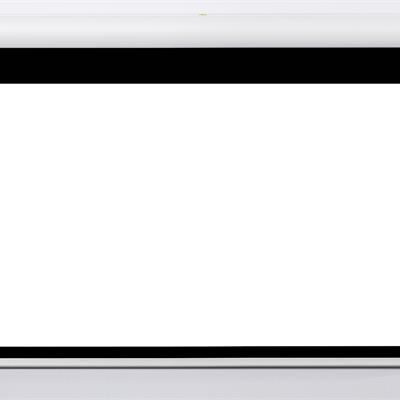

JAGO

Base from 203 cm up to 406 cm

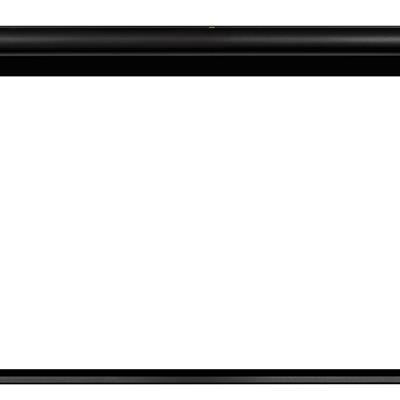

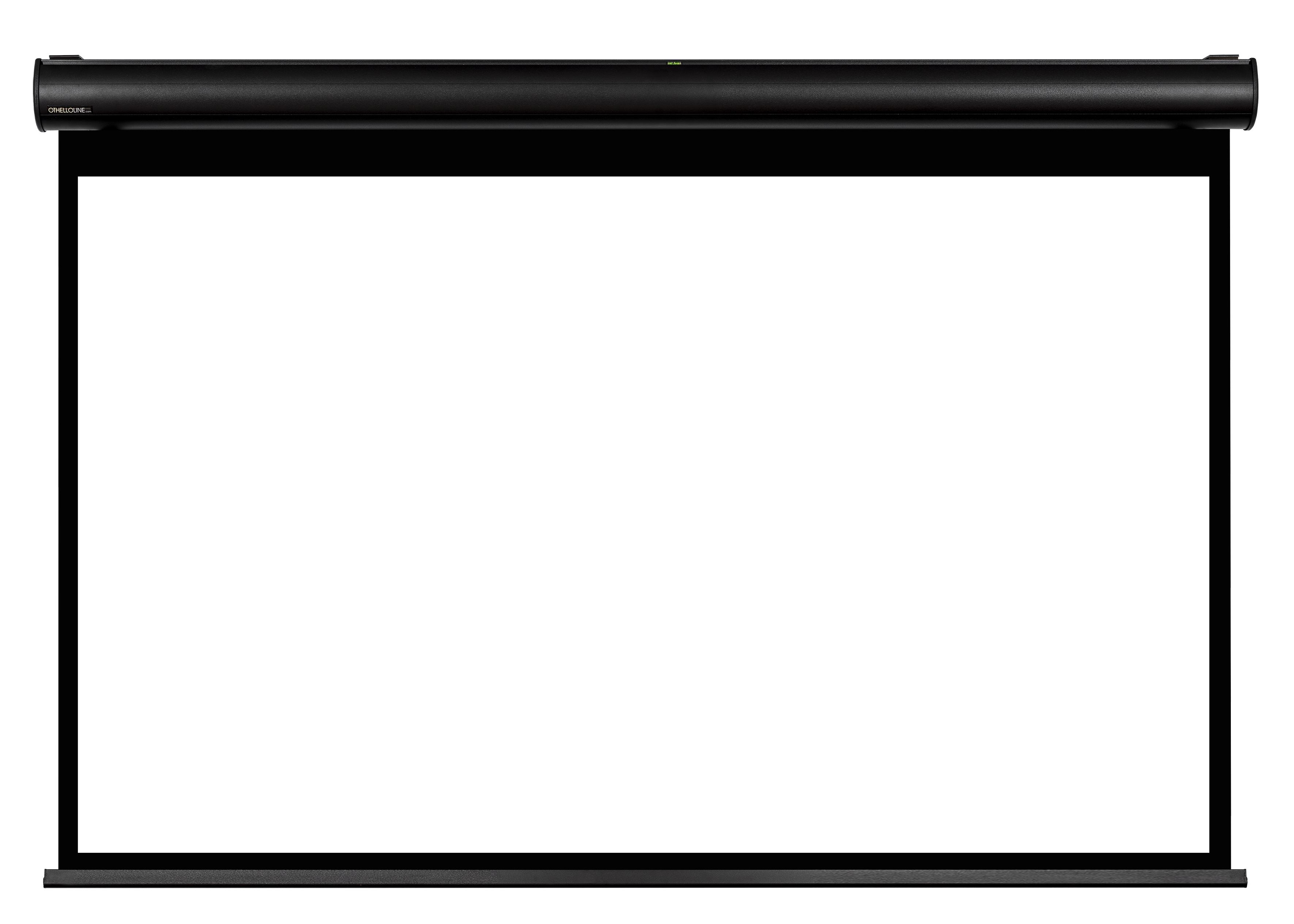

Thanks to the oval-shaped box and reinforced structure your Jago screen gets the max size of 406cm base. The wide choice among high contrast and sound-transparent fabrics together with the stylish design of Jago line are the best equipment for those who want to experience the cinema at home. Jago screens are available, upon request, in black aluminium.


 General safety norms
Customize your screen:

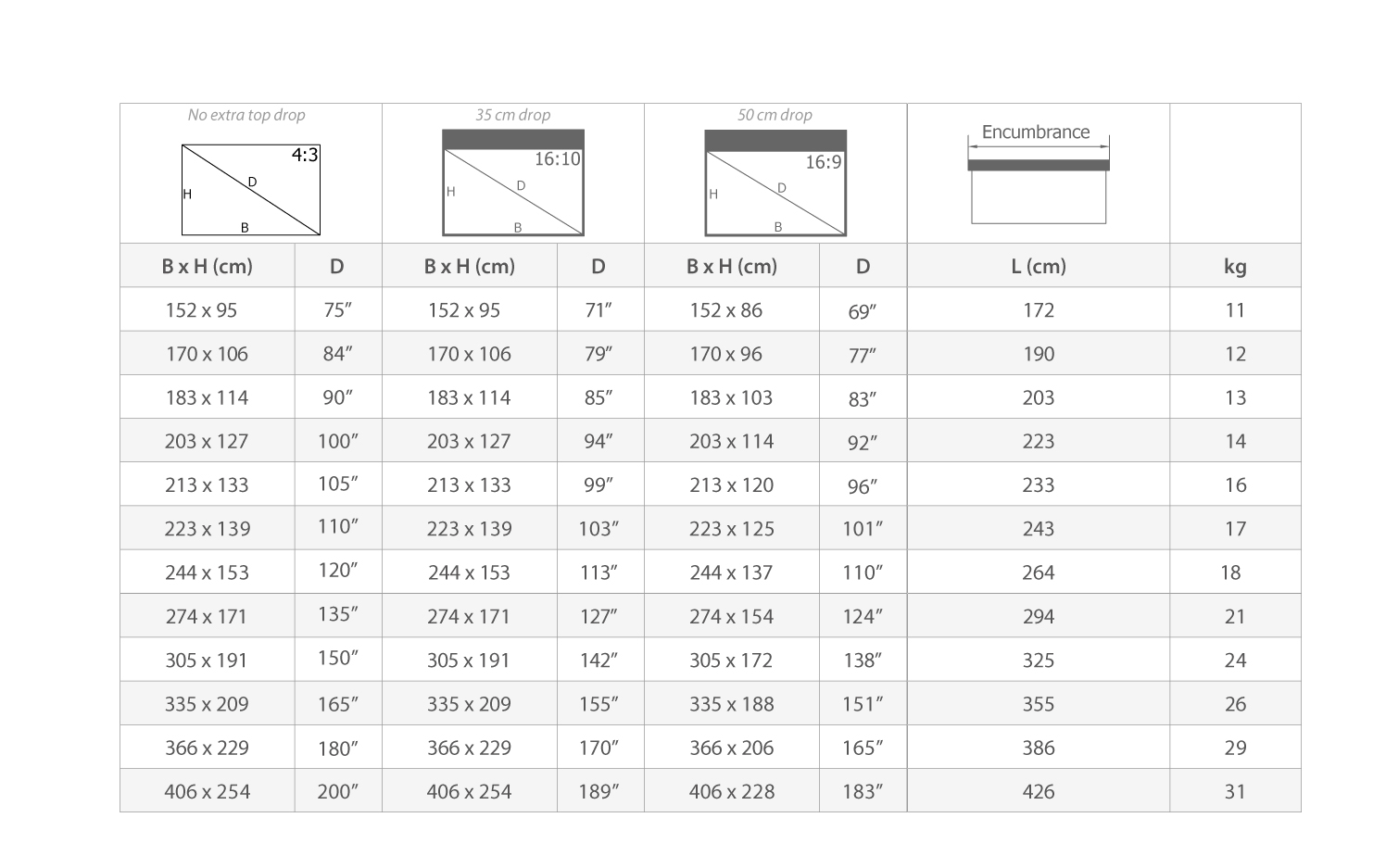

Standard formats and sizes
Download standard formats and sizes (.pdf)
COMPONENTS AND ACCESSORIES
SWITCH
SWITCH
Fixed rectangular switch (included)
KIT RF
KIT RF
Radio Frequency (on request)
COMPLETE KIT
COMPLETE KIT
(RF+MANUAL SWITCH) (on request)
COMPLETE KIT+ TRIGGER
COMPLETE KIT+ TRIGGER
(RF+MANUAL SWITCH+TRIGGER) (on request)
SLIM&MOT SPACER BRACKETS 5/15
SLIM&MOT SPACER BRACKETS 5/15
Adjustable spacer brackets 5cm - 15cm (on request)
SLIM&MOT SPACER BRACKETS 40/60
SLIM&MOT SPACER BRACKETS 40/60
Adjustable spacer brackets 40cm - 60cm (on request)
MOT BRACKETS
MOT BRACKETS
Standard brackets (included)
STANDARD SOMFY ENGINE
STANDARD SOMFY ENGINE
(included)
SONESSE SOMFY ENGINE
SONESSE SOMFY ENGINE
More silent (on request for screen up to 3 meters)
RADIOINTEGRATED ENGINE
RADIOINTEGRATED ENGINE
Somfy motor + RF (on request)
Fabrics
White Ice
White Ice
Front Projection - gain 1.1 - 400 micron - H roll 2300 mm - Motorized screen
Home Vision
Home Vision
Front Projection - gain 1.2 - 420 micron - H roll 2100 mm - 4k - Motorized screen
Microperforated
Microperforated
Front Projection - Sound Transmitting - gain 1.05 - 400 micron - H roll 2300 mm - Motorized and frame screen
Grey High Contrast
Grey High Contrast
Front Projection - gain 0.8 - 380 micron - H roll 2200 mm for motorized screen H roll 3200 mm for frame screen - 4K Approved
Radiance 0.6
Radiance 0.6
Front Projection - Ambient light - gain 0.6 - 400 micron - H roll 2300 mm - 4K Approved - Motorized and frame screen
Coral
Coral
Rear Projection - gain 1.8 - 400 micron - H roll 2200 mm - Motorized screen - 4K Approved
Download
brochure (.pdf)
Instruction (.pdf)
Sample technical drawing (.pdf)
