LIVING

The new Home Cinema frame screen


Living is the new extruded aluminum frame dedicated to Home Cinema.
Available from 200 to 450 cm base with 10 cm matt black frame.
It has a 45 ° internal angle profile designed for ultra short throw projectors. This ergonomics also ensures perfect flatness of the fabric installed on the back of the frame.

TECHNICAL SPECIFICATIONS:

• Performance and vigorous profile that allows to reach viewing area base up to 6 m.
• The ergonomical shape of the frame offers a physiological tension of the fabric.
• 45 ° internal angle for a perfect video projection with ultra short throw.
• Great versatility of wall, ceiling installation with truss and wall brackets.
• Recommended in combination with one of the specific high contrast RADIANCE fabrics for video projection in ambient light.
 General safety norms
Customize your screen:

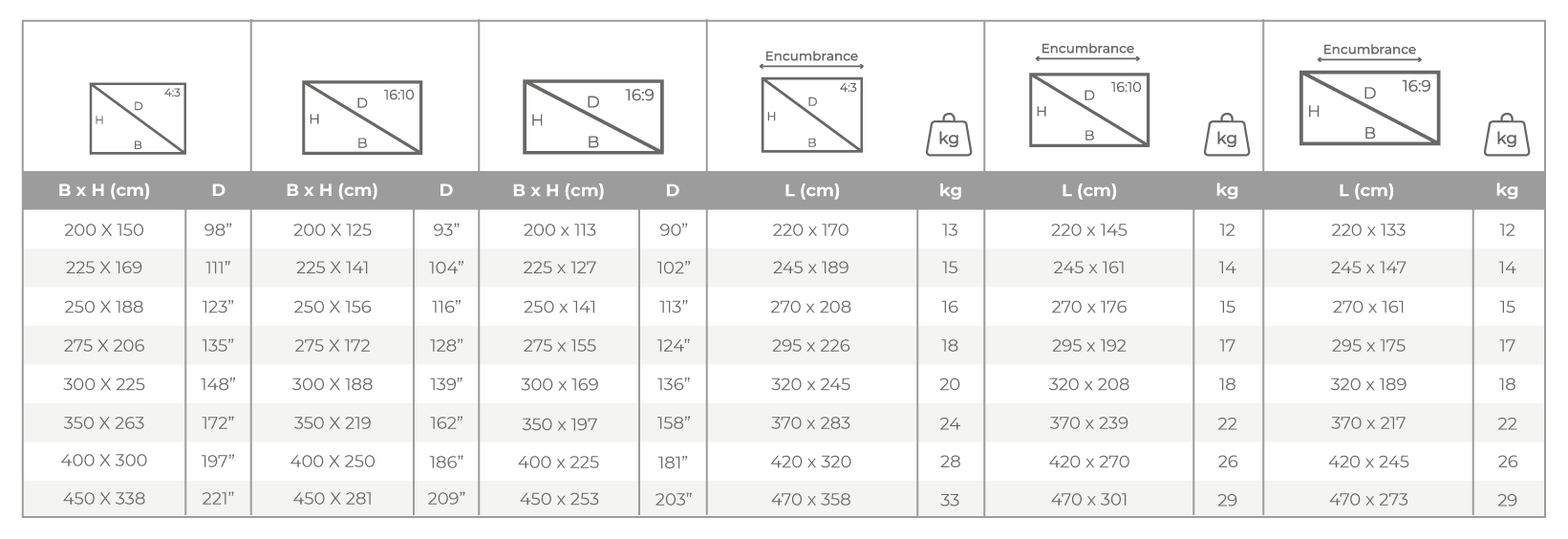

Standard formats and sizes
Available sizes (.pdf)
COMPONENTS AND ACCESSORIES
Walll brackets
Walll brackets
(included)
Hanging bracket
Hanging bracket
Included
Truss brackets
Truss brackets
on request
Fabrics
Diamond
Diamond
Front Projection - gain 1.2 - 260 micron - H roll 3200 mm - 4K Approved - Frame screen
Perforated
Perforated
Front Projection - Sound Transmitting - gain 1.0 - 400 micron - Motorized and frame screen -H roll 2300 mm
Microperforated
Microperforated
Front Projection - Sound Transmitting - gain 1.05 - 400 micron - H roll 2300 mm - Motorized and frame screen
Grey High Contrast
Grey High Contrast
Front Projection - gain 0.8 - 380 micron - H roll 2200 mm for motorized screen H roll 3200 mm for frame screen - 4K Approved
Grey High Contrast Microperforated
Grey High Contrast Microperforated
Front Projection - Sound Transparency - gain 0.75 - 380 micron - H roll 2200 mm - Motorized screen and frame screen
Radiance 0.6
Radiance 0.6
Front Projection - Ambient light - gain 0.6 - 400 micron - H roll 2300 mm - 4K Approved - Motorized and frame screen
Radiance 0.8
Radiance 0.8
Front Projection - Ambient light - gain 0.8 - 400 micron - H roll 2100 mm - Motorized and frame screen - 4K Approved
Ambra
Ambra
Rear Projection - gain 2.5 - 300 micron - H roll 3200 mm - Frame screen - 4K Approved
Download
Instructions (.pdf)
Technical drawing example (.pdf)
Brochure Living range (.pdf)
You did not find
your perfect solution?
Contact our design bureau
Screen designers and manufacturers of Italy.
