LIVING THIN

The new Home Cinema frame screen

Living is the new extruded aluminum frame dedicated to Home Cinema.
Available from 200 to 450 cm base with 5 mm matt black frame.
This model, combined with the high-contrast RADIANCE fabrics specific for video projection in normally lit environments, represents the market trend and the maximum evolution of modern home cinema.

TECHNICAL SPECIFICATIONS::

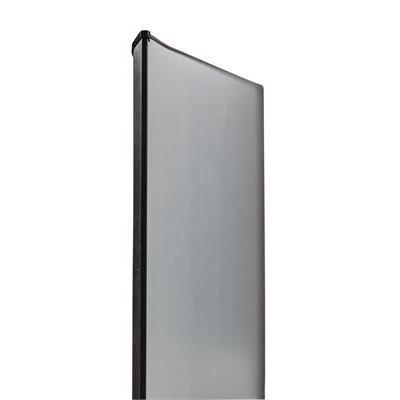

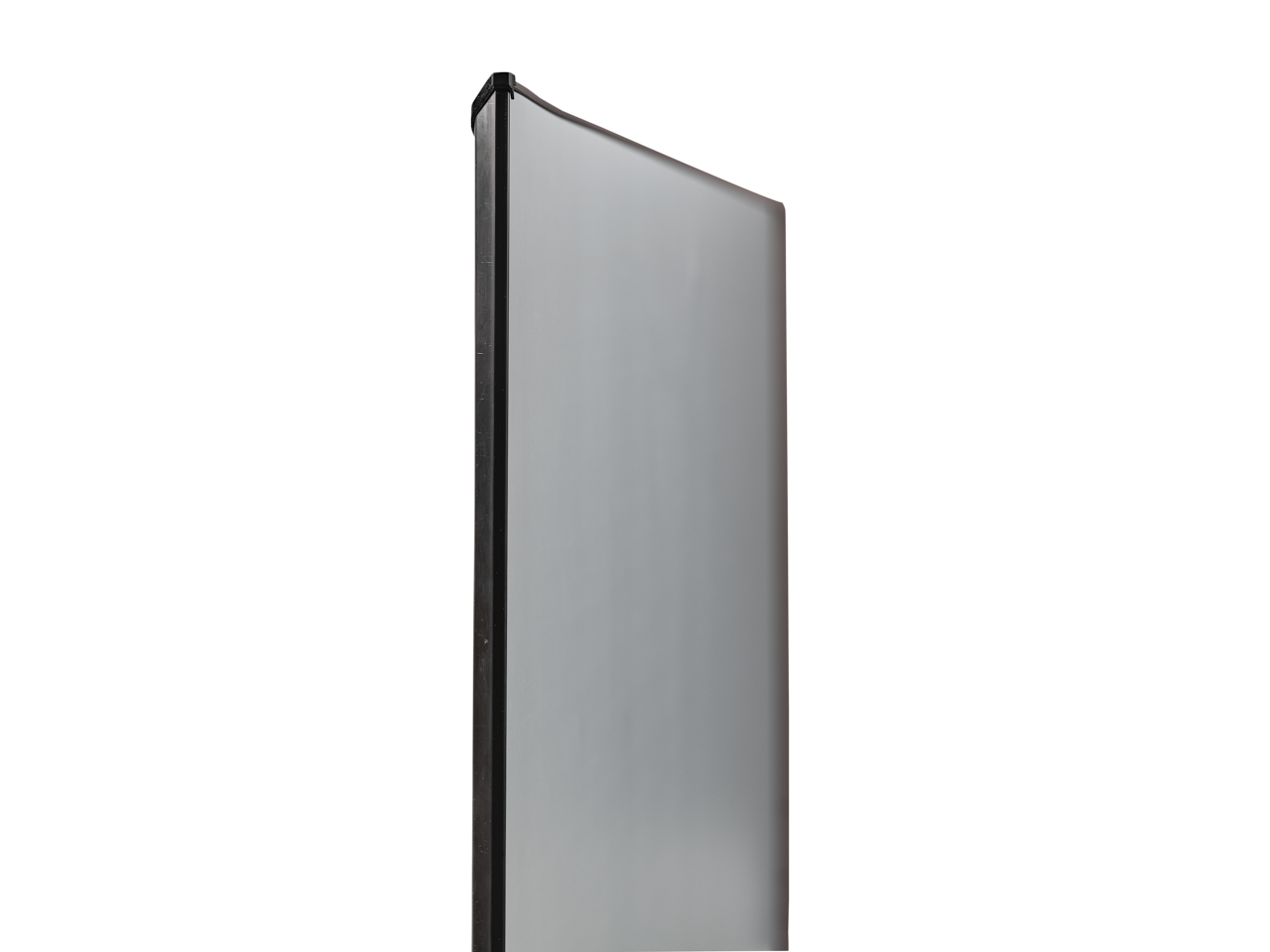

• High-performance and vigorous profile that grants up to 6 meters of projection light base.

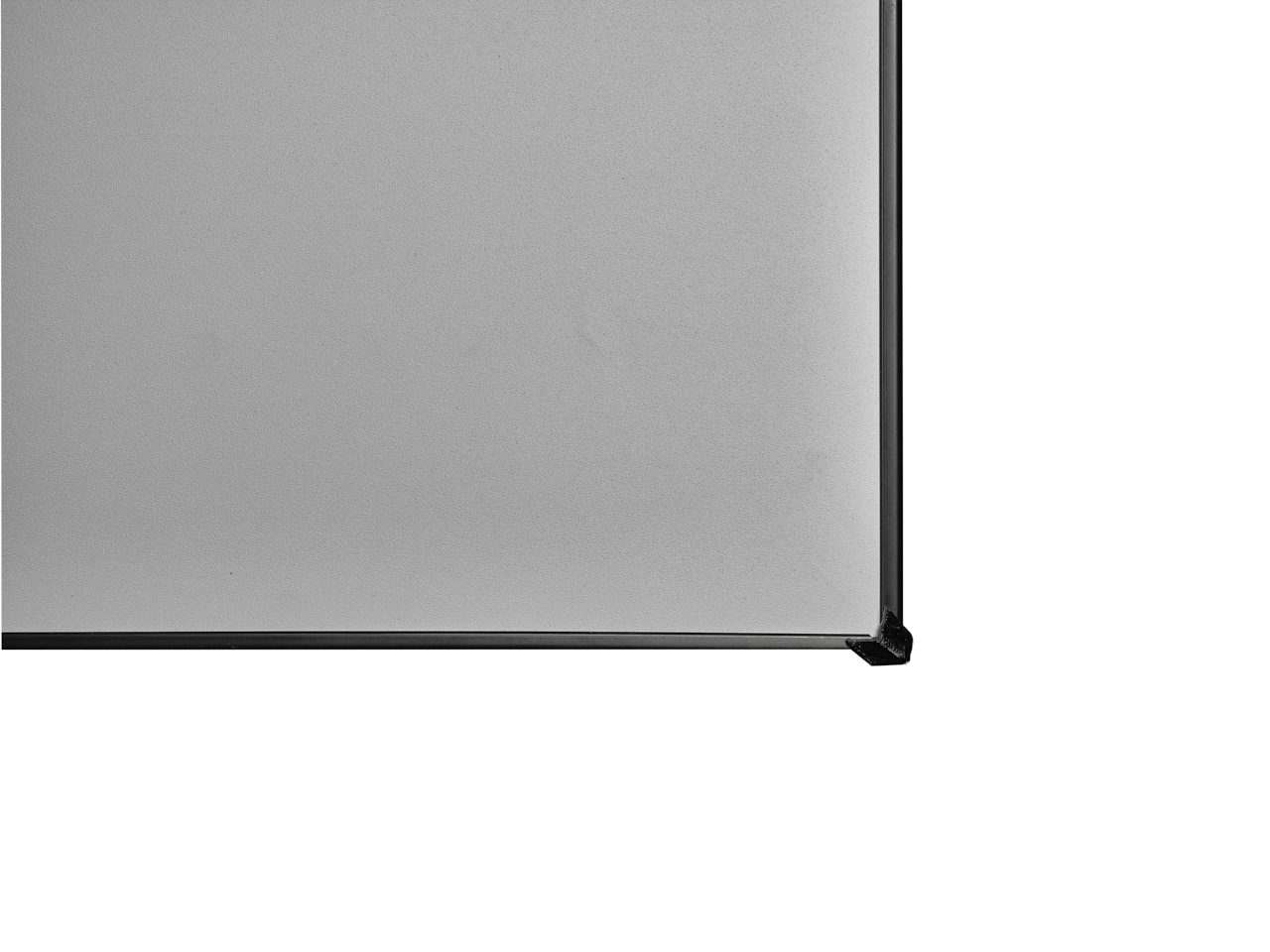

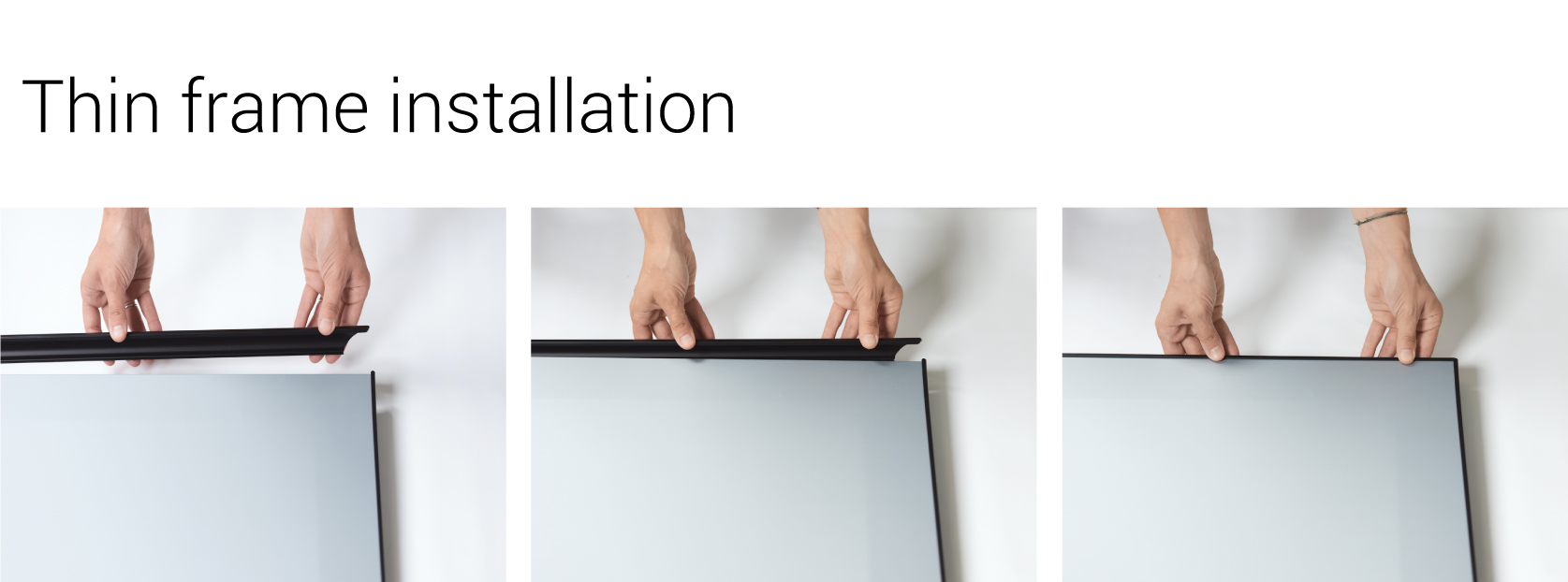

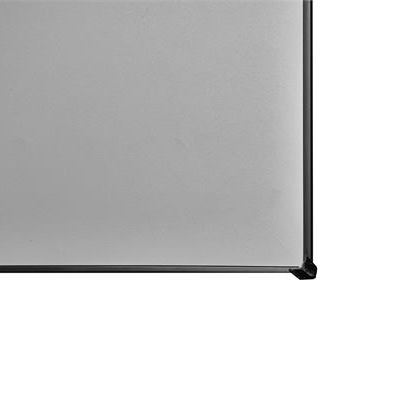

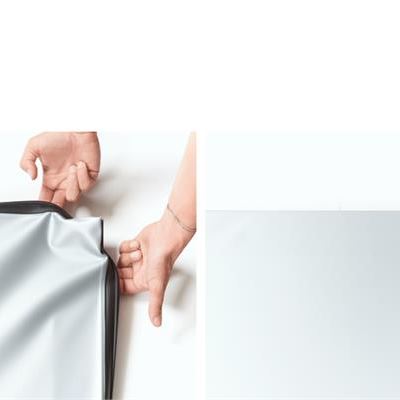

• The 5mm black is very easy to install and finished with a protective interlocking corner.

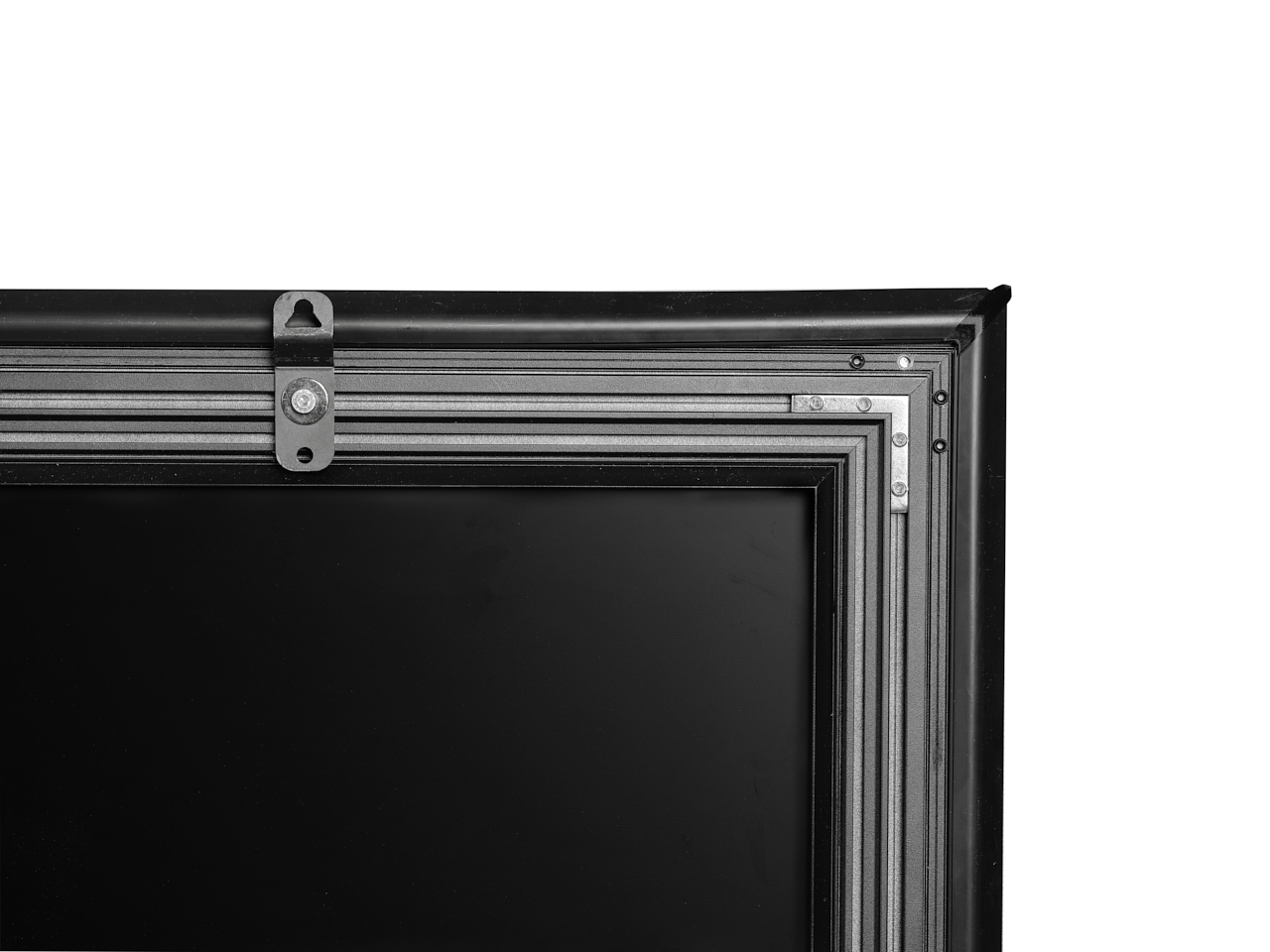

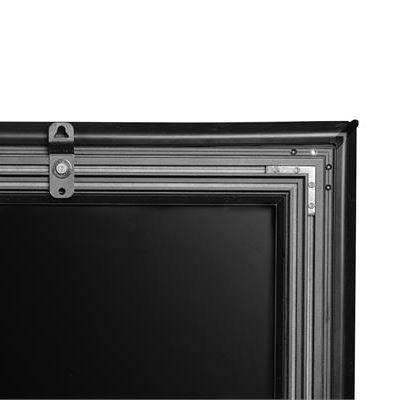

• Great versatility of wall, ceiling installation with truss and wall brackets.
• Recommended in combination with one of the specific high contrast RADIANCE fabrics for video projection in ambient light.

General safety norms

Customize your screen:

Standard formats and sizes

Available sizes (.pdf)

COMPONENTS AND ACCESSORIES

Walll brackets

Walll brackets
(included)

Hanging bracket

Hanging bracket
Included

Truss brackets

Truss brackets
on request

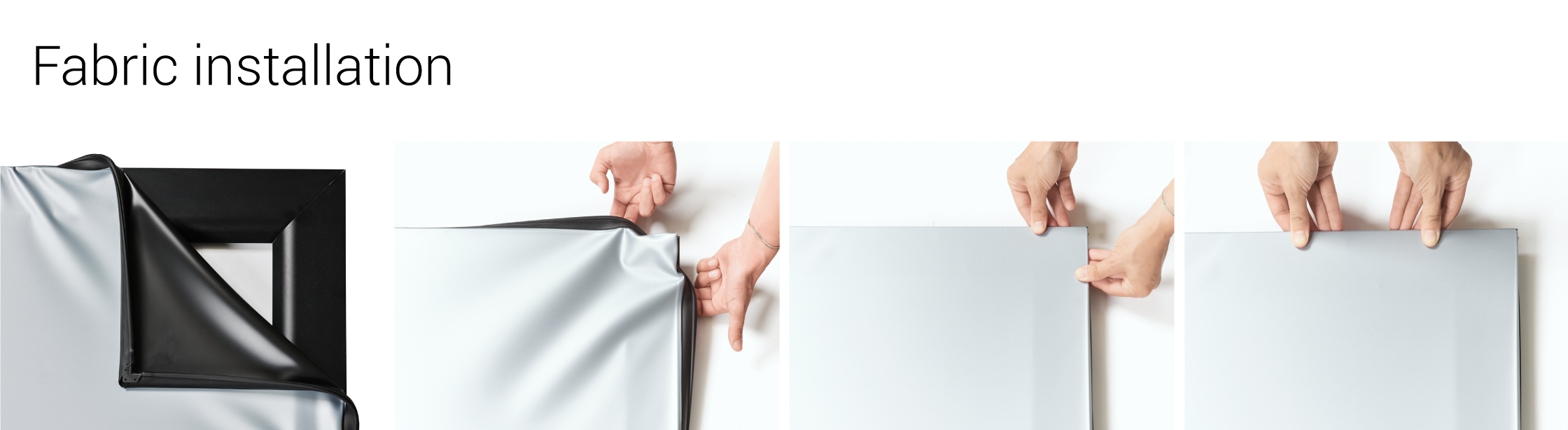

Fabrics

Diamond

Diamond
Front Projection - gain 1.2 - 260 micron - H roll 3200 mm - 4K Approved - Frame screen

Perforated

Perforated
Front Projection - Sound Transmitting - gain 1.0 - 400 micron - Motorized and frame screen -H roll 2300 mm

Microperforated

Microperforated
Front Projection - Sound Transmitting - gain 1.05 - 400 micron - H roll 2300 mm - Motorized and frame screen

Grey High Contrast

Grey High Contrast
Front Projection - gain 0.8 - 380 micron - H roll 2200 mm for motorized screen H roll 3200 mm for frame screen - 4K Approved

Grey High Contrast Microperforated

Grey High Contrast Microperforated
Front Projection - Sound Transparency - gain 0.75 - 380 micron - H roll 2200 mm - Motorized screen and frame screen

Radiance 0.6

Radiance 0.6
Front Projection - Ambient light - gain 0.6 - 400 micron - H roll 2300 mm - 4K Approved - Motorized and frame screen

Radiance 0.8

Radiance 0.8
Front Projection - Ambient light - gain 0.8 - 400 micron - H roll 2100 mm - Motorized and frame screen - 4K Approved

Download

Living family brochure (.pdf)

Instructions (.pdf)
